Soft & hard biscuit making machine
Soft & hard biscuit making machine
To achieve an ideal effect, the production line can make various products' combination according to users' special requirements
such as factory's layout and biscuit's style,shape. Characteristics:adopts imported electrical components,frequency control of speed,
efficient energy-saving,either single or combined controlment.
Biscuits production process:
1. Flour mixer → 2. Roll cut biscuit forming machine → 3.Roll print biscuit forming machine →
4.Tunnel oven → 5.180degree Turning machine → 6.Oil spraying machine →
7.Cooling line → 8.Biscuit stacking machine →9.Biscuit sandwich machine → 10.Biscuit packing machine
Model | 250 | 400 | 600 | 800 | 1000 | 1200 |
Production capacity | 0.1t/h | 0.3t/h | 0.5t/h | 0.8t/h | 1t/h | 1.2t/h |
Total power Electric heating | 50KW | 120KW | 220KW | 320KW | 420KW | 500KW |

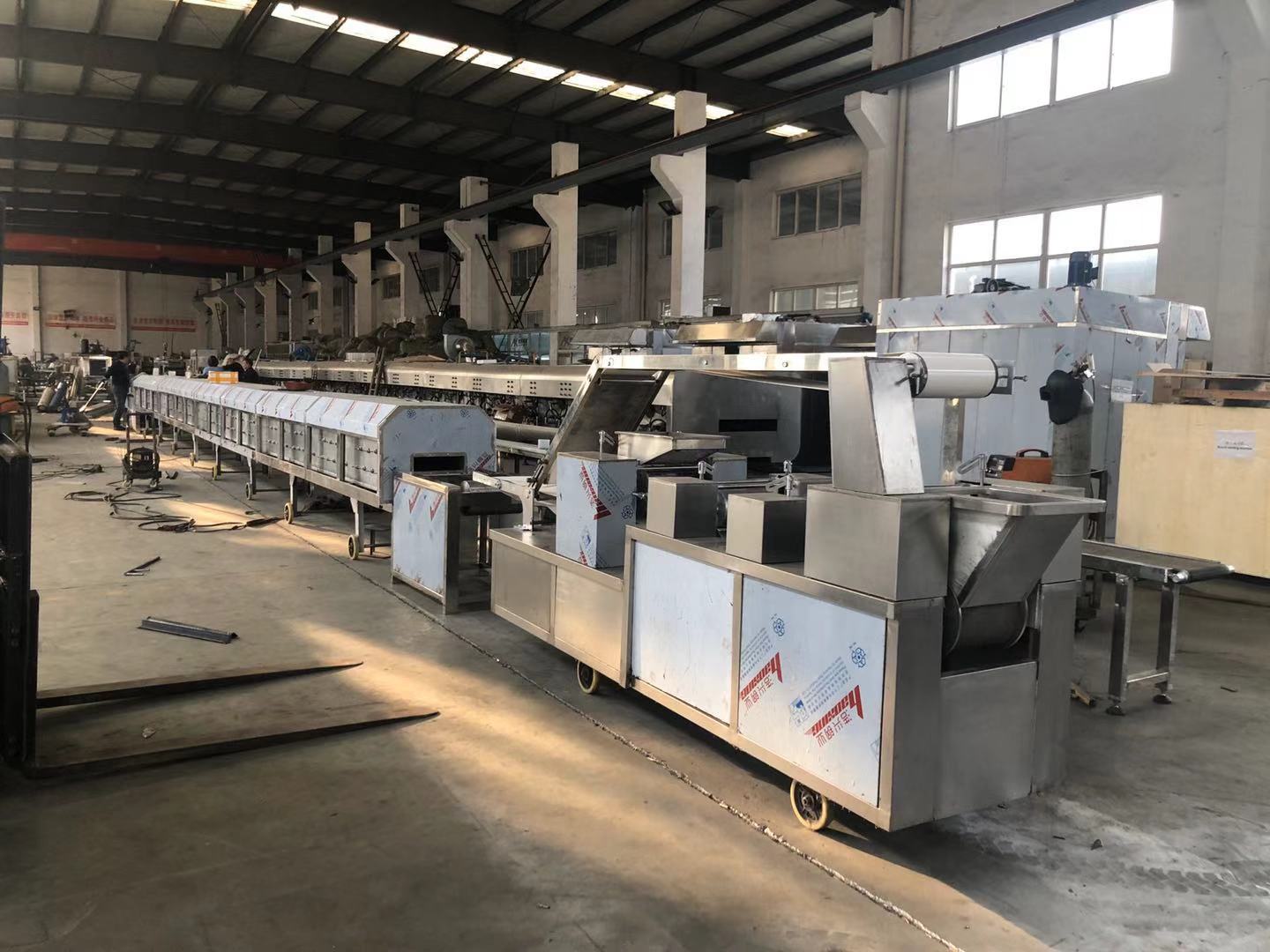

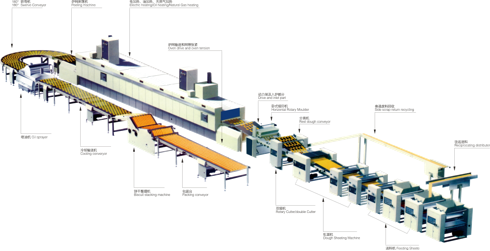

Consist of a biscuit line:
1.Horizontal dough mixer
2.Automatic dough tipper and feeding system
3.Three-roll combination sheeter for feeding and sheeting the dough
4.Laminator for overlapping dough to sheeting on gauge rolls, included cream spreading machine.
5.Gauge rolls
6.Rotary cutting machine for hard biscuit forming
7.Scrap collection and return system
8.Rotary moulder for soft biscuit forming
9.Salt/sugar spreading machine
10.Tunnel oven.Three kinds of heating source: Electric, Natural Gas, Liquefied Petroleum Gas.
11.Oil spraying machine
12.Turning machine 180degree or 90degree design as per the plant length
13.Cooling conveyor
14.Biscuit stacking machine
15.Packing table
